2023 Hyundai Santa Fe V (MX5) 2.5 Smartstream (281 Hp) AWD DCT

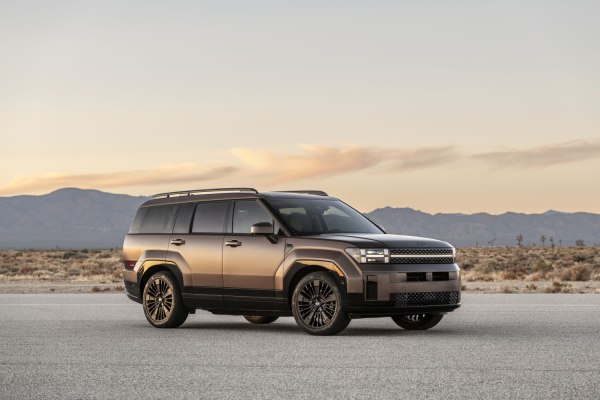

2024 Hyundai Santa Fe V (MX5) - Photo 1
Hyundai Santa Fe V (MX5) - Photo 2Hyundai Santa Fe V (MX5) - Photo 3Hyundai Santa Fe V (MX5) - Photo 4Hyundai Santa Fe V (MX5) - Photo 5Hyundai Santa Fe V (MX5) - Photo 6Hyundai Santa Fe V (MX5) - Photo 7Hyundai Santa Fe V (MX5) - Photo 8Hyundai Santa Fe V (MX5) - Photo 9Hyundai Santa Fe V (MX5) - Photo 10

Key specs

Hyundai Santa Fe SUV 2023, 2024

What is the body type, Hyundai Santa Fe V (MX5)?SUV, 5 Doors, 5-7 Seats
What is the fuel economy, Hyundai Santa Fe V (MX5) 2.5 Smartstream (281 Hp) AWD DCT?9.9-10.6 l/100 km
23.76 - 22.19 US mpg
28.53 - 26.65 UK mpg
10.1 - 9.43 km/l
How ECO is the car, Hyundai Santa Fe 2.5 Smartstream (281 Hp) AWD DCT?168-181 g/km CO2
How much power, Hyundai Santa Fe SUV 2023 2.5 Smartstream (281 Hp) AWD DCT?281 Hp, 421 Nm
310.51 lb.-ft.
What is the engine size, Hyundai Santa Fe SUV 2023 2.5 Smartstream (281 Hp) AWD DCT?2.5 l
2497 cm3
152.38 cu. in.
How many cylinders, 2023 Hyundai 2.5 Smartstream (281 Hp) AWD DCT?4, Inline
What is the drivetrain, Hyundai Santa Fe V (MX5) SUV 2023 2.5 Smartstream (281 Hp) AWD DCT?All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
How long is this vehicle, 2023 Hyundai Santa Fe SUV?4830 mm
190.16 in.
How wide is the vehicle, 2023 Hyundai Santa Fe SUV?1900 mm
74.8 in.
What is the curb weight, 2023 Hyundai Santa Fe V (MX5) 2.5 Smartstream (281 Hp) AWD DCT?1860-1985 kg
4100.6 - 4376.18 lbs.
How many gears, What type is the gearbox, 2023 Hyundai Santa Fe V (MX5) 2.5 Smartstream (281 Hp) AWD DCT?8, automatic transmission DCT

Hyundai Santa Fe V (MX5) 2.5 Smartstream (281 Hp) AWD DCT 2023, 2024 Specs

General information
BrandHyundai
Model Santa Fe
Generation Santa Fe V (MX5)
Modification (Engine) 2.5 Smartstream (281 Hp) AWD DCT
Start of production August, 2023 year
Powertrain Architecture Internal Combustion engine
Body typeSUV
Seats 5-7
Doors 5
Performance specs
Fuel consumption (economy) - urban 11.4-12.2 l/100 km 20.63 - 19.28 US mpg
24.78 - 23.15 UK mpg
8.77 - 8.2 km/l
Fuel consumption (economy) - extra urban 8.2-8.8 l/100 km 28.68 - 26.73 US mpg
34.45 - 32.1 UK mpg
12.2 - 11.36 km/l
Fuel consumption (economy) - combined 9.9-10.6 l/100 km 23.76 - 22.19 US mpg
28.53 - 26.65 UK mpg
10.1 - 9.43 km/l
CO2 emissions168-181 g/km
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 6.6 kg/Hp, 151.1 Hp/tonne
Weight-to-torque ratio 4.4 kg/Nm, 226.3 Nm/tonne
Engine specs
Power 281 Hp @ 5800 rpm.
Power per litre 112.5 Hp/l
Torque 421 Nm @ 1700-4000 rpm. 310.51 lb.-ft. @ 1700-4000 rpm.
Engine layout Front, Transverse
Engine Model/Code Smartstream
Engine displacement 2497 cm3 152.38 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine systemsStart & Stop System
Space, Volume and weights
Kerb Weight 1860-1985 kg 4100.6 - 4376.18 lbs.
Fuel tank capacity 67 l 17.7 US gal | 14.74 UK gal
Dimensions
Length 4830 mm 190.16 in.
Width 1900 mm 74.8 in.
Height 1720-1780 mm 67.72 - 70.08 in.
Wheelbase 2815 mm 110.83 in.
Front track 1637-1646 mm 64.45 - 64.8 in.
Rear (Back) track 1647-1656 mm 64.84 - 65.2 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4x4)
Number of gears and type of gearbox 8 gears, automatic transmission DCT
Front brakesVentilated discs
Rear brakesDisc
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/60 R18; 255/45 R20; 245/45 R21
Wheel rims size18; 20; 21
