2024 Hyundai Santa Fe V (MX5) 1.6T (253 Hp) Plug-in Hybrid 4WD Automatic

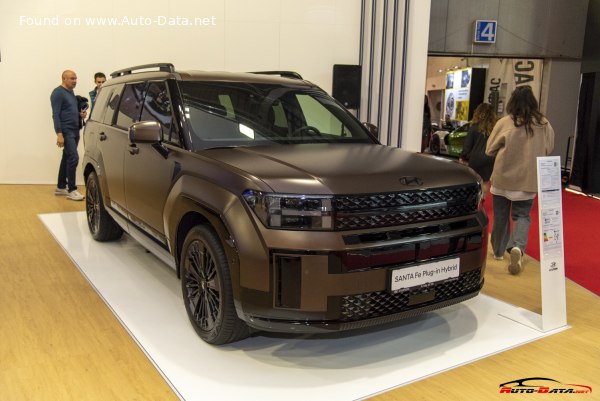

2024 Hyundai Santa Fe V (MX5) - Photo 1
Hyundai Santa Fe V (MX5) - Photo 2Hyundai Santa Fe V (MX5) - Photo 3Hyundai Santa Fe V (MX5) - Photo 4Hyundai Santa Fe V (MX5) - Photo 5Hyundai Santa Fe V (MX5) - Photo 6Hyundai Santa Fe V (MX5) - Photo 7Hyundai Santa Fe V (MX5) - Photo 8Hyundai Santa Fe V (MX5) - Photo 9Hyundai Santa Fe V (MX5) - Photo 10

Key specs

Hyundai Santa Fe SUV 2024

What is the body type, Hyundai Santa Fe V (MX5)?SUV, 5 Doors, 6-7 Seats
How ECO is the car, Hyundai Santa Fe 1.6T (253 Hp) Plug-in Hybrid 4WD Automatic?Euro 6E
How fast is the car, 2024 Santa Fe V (MX5) 1.6T (253 Hp) Plug-in Hybrid 4WD Automatic?180 km/h | 111.85 mph
0-100 km/h: 9.3 sec
0-60 mph: 8.8 sec
How much power, Hyundai Santa Fe SUV 2024 1.6T (253 Hp) Plug-in Hybrid 4WD Automatic?253 Hp, 265 Nm
195.45 lb.-ft.
What is the engine size, Hyundai Santa Fe SUV 2024 1.6T (253 Hp) Plug-in Hybrid 4WD Automatic?1.6 l
1598 cm3
97.52 cu. in.
How many cylinders, 2024 Hyundai 1.6T (253 Hp) Plug-in Hybrid 4WD Automatic?4, Inline
What is the drivetrain, Hyundai Santa Fe V (MX5) SUV 2024 1.6T (253 Hp) Plug-in Hybrid 4WD Automatic?All wheel drive (4x4). PHEV (Plug-in Hybrid Electric Vehicle). The Internal combustion engine (ICE) and the electric motor permanently drive the front wheels of the vehicle, capable of running in full electric or mixed mode, and if necessary through the electrically or mechanically controlled clutch, the rear wheels are driven.
How long is this vehicle, 2024 Hyundai Santa Fe SUV?4830 mm
190.16 in.
How wide is the vehicle, 2024 Hyundai Santa Fe SUV?1900 mm
74.8 in.
What is the curb weight, 2024 Hyundai Santa Fe V (MX5) 1.6T (253 Hp) Plug-in Hybrid 4WD Automatic?2090-2145 kg
4607.66 - 4728.92 lbs.
What is the gross weight, 2024 Hyundai Santa Fe V (MX5) 1.6T (253 Hp) Plug-in Hybrid 4WD Automatic?2740 kg
6040.67 lbs.
How much trunk (boot) space, 2024 Hyundai Santa Fe SUV?985 - 1949 l
34.78 - 68.83 cu. ft.
How many gears, What type is the gearbox, 2024 Hyundai Santa Fe V (MX5) 1.6T (253 Hp) Plug-in Hybrid 4WD Automatic?6, automatic transmission

Hyundai Santa Fe V (MX5) 1.6T (253 Hp) Plug-in Hybrid 4WD Automatic 2024 Specs

General information
BrandHyundai
Model Santa Fe
Generation Santa Fe V (MX5)
Modification (Engine) 1.6T (253 Hp) Plug-in Hybrid 4WD Automatic
Start of production April, 2024 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body typeSUV
Seats 6-7
Doors 5
Performance specs
Fuel Type Petrol / electricity
Acceleration 0 - 100 km/h9.3 sec
Acceleration 0 - 62 mph9.3 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net) 8.8 sec
Maximum speed 180 km/h 111.85 mph
Emission standard Euro 6E
Weight-to-power ratio 8.3 kg/Hp, 121.1 Hp/tonne
Weight-to-torque ratio 7.9 kg/Nm, 126.8 Nm/tonne
Electric cars and hybrids specs
Charging portsLog in to see.Log in to see.
System power 253 Hp
Internal combustion engine specs
Power 160 Hp @ 5500 rpm.
Power per litre 100.1 Hp/l
Torque 265 Nm @ 1500-3500 rpm. 195.45 lb.-ft. @ 1500-3500 rpm.
Engine layout Front, Transverse
Engine Model/Code Smartstream/G4FU
Engine displacement 1598 cm3 97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 75.6 mm 2.98 in.
Piston Stroke 89 mm 3.5 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine systemsStart & Stop System
Particulate filter
Space, Volume and weights
Kerb Weight 2090-2145 kg 4607.66 - 4728.92 lbs.
Max. weight 2740 kg 6040.67 lbs.
Max load 595-650 kg 1311.75 - 1433 lbs.
Trunk (boot) space - minimum 985 l 34.78 cu. ft.
Trunk (boot) space - maximum 1949 l 68.83 cu. ft.
Fuel tank capacity 47 l 12.42 US gal | 10.34 UK gal
Permitted trailer load with brakes (12%) 1110 kg 2447.13 lbs.
Permitted trailer load without brakes 750 kg 1653.47 lbs.
Dimensions
Length 4830 mm 190.16 in.
Width 1900 mm 74.8 in.
Height 1780 mm 70.08 in.
Wheelbase 2815 mm 110.83 in.
Minimum turning circle (turning diameter) 11.6 m 38.06 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the front wheels of the vehicle, capable of running in full electric or mixed mode, and if necessary through the electrically or mechanically controlled clutch, the rear wheels are driven.
Drive wheel All wheel drive (4x4)
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakesVentilated discs, 325 mm
Rear brakesVentilated discs, 325 mm
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/45 R20
Wheel rims size8.5J x 20
