2020 Hyundai Elantra VII (CN7) 2.0 MPI (147 Hp) IVT

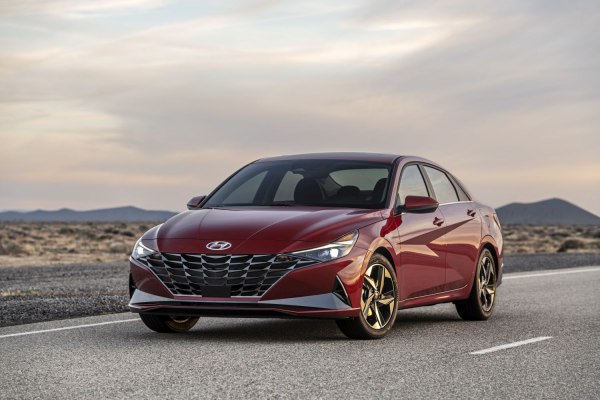

2021 Hyundai Elantra VII (CN7) - Photo 1
Hyundai Elantra VII (CN7) - Photo 2Hyundai Elantra VII (CN7) - Photo 3Hyundai Elantra VII (CN7) - Photo 4Hyundai Elantra VII (CN7) - Photo 5Hyundai Elantra VII (CN7) - Photo 6Hyundai Elantra VII (CN7) - Photo 7Hyundai Elantra VII (CN7) - Photo 8Hyundai Elantra VII (CN7) - Photo 9Hyundai Elantra VII (CN7) - Photo 10

Key specs

Hyundai Elantra Sedan 2020, 2021, 2022, 2023

What is the body type, Hyundai Elantra VII (CN7)?Sedan, 4 Doors, 5 Seats
What is the fuel economy, Hyundai Elantra VII (CN7) 2.0 MPI (147 Hp) IVT?6.4-6.7 l/100 km
36.75 - 35.11 US mpg
44.14 - 42.16 UK mpg
15.63 - 14.93 km/l
How ECO is the car, Hyundai Elantra 2.0 MPI (147 Hp) IVT?ULEV70 SULEV30
How much power, Hyundai Elantra Sedan 2020 2.0 MPI (147 Hp) IVT?147 Hp, 179 Nm
132.02 lb.-ft.
What is the engine size, Hyundai Elantra Sedan 2020 2.0 MPI (147 Hp) IVT?2.0 l
1999 cm3
121.99 cu. in.
How many cylinders, 2020 Hyundai 2.0 MPI (147 Hp) IVT?4, Inline
What is the drivetrain, Hyundai Elantra VII (CN7) Sedan 2020 2.0 MPI (147 Hp) IVT?Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.
How long is this vehicle, 2020 Hyundai Elantra Sedan?4676 mm
184.09 in.
How wide is the vehicle, 2020 Hyundai Elantra Sedan?1826 mm
71.89 in.
What is the curb weight, 2020 Hyundai Elantra VII (CN7) 2.0 MPI (147 Hp) IVT?1236-1301 kg
2724.91 - 2868.21 lbs.
What is the gross weight, 2020 Hyundai Elantra VII (CN7) 2.0 MPI (147 Hp) IVT?1750 kg
3858.09 lbs.
How much trunk (boot) space, 2020 Hyundai Elantra Sedan?402 l
14.2 cu. ft.
How many gears, What type is the gearbox, 2020 Hyundai Elantra VII (CN7) 2.0 MPI (147 Hp) IVT?automatic transmission IVT

Hyundai Elantra VII (CN7) 2.0 MPI (147 Hp) IVT 2020, 2021, 2022, 2023 Specs

General information
BrandHyundai
Model Elantra
Generation Elantra VII (CN7)
Modification (Engine) 2.0 MPI (147 Hp) IVT
Start of production 2020 year
End of production 2023 year
Powertrain Architecture Internal Combustion engine
Body typeSedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) - urban 7.1-7.6 l/100 km 33.13 - 30.95 US mpg
39.79 - 37.17 UK mpg
14.08 - 13.16 km/l
Fuel consumption (economy) - extra urban 5.5-5.7 l/100 km 42.77 - 41.27 US mpg
51.36 - 49.56 UK mpg
18.18 - 17.54 km/l
Fuel consumption (economy) - combined 6.4-6.7 l/100 km 36.75 - 35.11 US mpg
44.14 - 42.16 UK mpg
15.63 - 14.93 km/l
Fuel Type Petrol (Gasoline)
Emission standard ULEV70 SULEV30
Weight-to-power ratio 8.4 kg/Hp, 118.9 Hp/tonne
Weight-to-torque ratio 6.9 kg/Nm, 144.8 Nm/tonne
Engine specs
Power 147 Hp @ 6200 rpm.
Power per litre 73.5 Hp/l
Torque 179 Nm @ 4500 rpm. 132.02 lb.-ft. @ 4500 rpm.
Engine layout Front, Transverse
Engine Model/Code Smartstream / G4NS
Engine displacement 1999 cm3 121.99 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm 3.19 in.
Piston Stroke 97 mm 3.82 in.
Compression ratio 12.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Valvetrain DOHC, D-CVVT
Engine oil capacity 4.3 l 4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.4 l 7.82 US qt | 6.51 UK qt
Engine systemsStart & Stop System
Space, Volume and weights
Kerb Weight 1236-1301 kg 2724.91 - 2868.21 lbs.
Max. weight 1750 kg 3858.09 lbs.
Max load 449-514 kg 989.88 - 1133.18 lbs.
Trunk (boot) space - minimum 402 l 14.2 cu. ft.
Fuel tank capacity 47 l 12.42 US gal | 10.34 UK gal
Dimensions
Length 4676 mm 184.09 in.
Width 1826 mm 71.89 in.
Height 1415 mm 55.71 in.
Wheelbase 2720 mm 107.09 in.
Front track 1580-1593 mm 62.2 - 62.72 in.
Rear (Back) track 1590-1603 mm 62.6 - 63.11 in.
Front overhang 894 mm 35.2 in.
Rear overhang 1059 mm 41.69 in.
Ride height (ground clearance) 135 mm 5.31 in.
Drag coefficient (Cd) 0.28
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission IVT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Torsion
Front brakesVentilated discs, 279.4 mm
Rear brakesDisc, 254 mm
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16 91H; 205/50 R17 89V; 225/45 R17 91W
Wheel rims size6J x 16; 6.5J x 17; 7J x 17
