2005 Volkswagen Phaeton Long 3.2 V6 (241 Hp) Tiptronic 4Motion

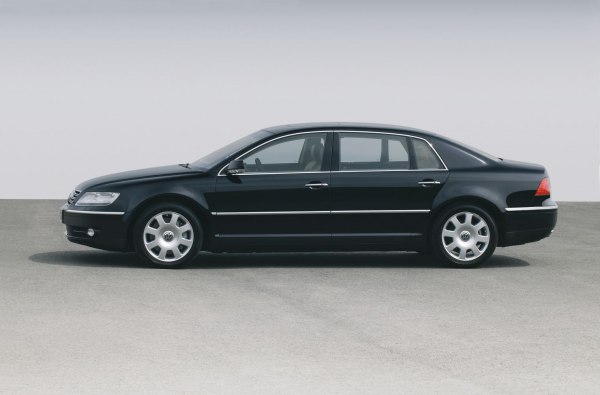

2005 Volkswagen Phaeton Long - Photo 1
Volkswagen Phaeton Long - Photo 2Volkswagen Phaeton Long - Photo 3Volkswagen Phaeton Long - Photo 4Volkswagen Phaeton Long - Photo 5Volkswagen Phaeton Long - Photo 6Volkswagen Phaeton Long - Photo 7Volkswagen Phaeton Long - Photo 8

Key specs

Volkswagen Phaeton Sedan 2005, 2006, 2007, 2008

What is the body type, Volkswagen Phaeton Long?Sedan, 4 Doors, 4-5 Seats
What is the fuel economy, Volkswagen Phaeton Long 3.2 V6 (241 Hp) Tiptronic 4Motion?11.7 l/100 km
20.1 US mpg
24.14 UK mpg
8.55 km/l
How ECO is the car, Volkswagen Phaeton 3.2 V6 (241 Hp) Tiptronic 4Motion?Euro 4
How fast is the car, 2005 Phaeton Long 3.2 V6 (241 Hp) Tiptronic 4Motion?250 km/h | 155.34 mph
0-100 km/h: 8.9 sec
0-60 mph: 8.5 sec
How much power, Volkswagen Phaeton Sedan 2005 3.2 V6 (241 Hp) Tiptronic 4Motion?241 Hp, 310 Nm
228.64 lb.-ft.
What is the engine size, Volkswagen Phaeton Sedan 2005 3.2 V6 (241 Hp) Tiptronic 4Motion?3.2 l
3189 cm3
194.6 cu. in.
How many cylinders, 2005 Volkswagen 3.2 V6 (241 Hp) Tiptronic 4Motion?6, V-engine
What is the drivetrain, Volkswagen Phaeton Long Sedan 2005 3.2 V6 (241 Hp) Tiptronic 4Motion?All wheel drive (4x4). Internal Combustion engine.
How long is this vehicle, 2005 Volkswagen Phaeton Sedan?5175 mm
203.74 in.
How wide is the vehicle, 2005 Volkswagen Phaeton Sedan?1903 mm
74.92 in.
What is the curb weight, 2005 Volkswagen Phaeton Long 3.2 V6 (241 Hp) Tiptronic 4Motion?2390 kg
5269.05 lbs.
What is the gross weight, 2005 Volkswagen Phaeton Long 3.2 V6 (241 Hp) Tiptronic 4Motion?2910 kg
6415.45 lbs.
How much trunk (boot) space, 2005 Volkswagen Phaeton Sedan?500 l
17.66 cu. ft.
How many gears, What type is the gearbox, 2005 Volkswagen Phaeton Long 3.2 V6 (241 Hp) Tiptronic 4Motion?5, automatic transmission

Volkswagen Phaeton Long 3.2 V6 (241 Hp) Tiptronic 4Motion 2005, 2006, 2007, 2008 Specs

General information
BrandVolkswagen
Model Phaeton
Generation Phaeton Long
Modification (Engine) 3.2 V6 (241 Hp) Tiptronic 4Motion
Start of production 2005 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body typeSedan
Seats 4-5
Doors 4
Performance specs
Fuel consumption (economy) - urban 17.1 l/100 km 13.76 US mpg
16.52 UK mpg
5.85 km/l
Fuel consumption (economy) - extra urban 8.6 l/100 km 27.35 US mpg
32.85 UK mpg
11.63 km/l
Fuel consumption (economy) - combined 11.7 l/100 km 20.1 US mpg
24.14 UK mpg
8.55 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 - 100 km/h8.9 sec
Acceleration 0 - 62 mph8.9 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net) 8.5 sec
Maximum speed 250 km/h 155.34 mph
Emission standard Euro 4
Weight-to-power ratio 9.9 kg/Hp, 100.8 Hp/tonne
Weight-to-torque ratio 7.7 kg/Nm, 129.7 Nm/tonne
Engine specs
Power 241 Hp @ 6200 rpm.
Power per litre 75.6 Hp/l
Torque 310 Nm @ 3200 rpm. 228.64 lb.-ft. @ 3200 rpm.
Engine layout Front, Transverse
Engine Model/Code AYT, BKL, BRK
Engine displacement 3189 cm3 194.6 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 84 mm 3.31 in.
Piston Stroke 95.9 mm 3.78 in.
Compression ratio 11.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 6 l 6.34 US qt | 5.28 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l 9.51 US qt | 7.92 UK qt
Space, Volume and weights
Kerb Weight 2390 kg 5269.05 lbs.
Max. weight 2910 kg 6415.45 lbs.
Max load 520 kg 1146.4 lbs.
Trunk (boot) space - minimum 500 l 17.66 cu. ft.
Fuel tank capacity 90 l 23.78 US gal | 19.8 UK gal
Dimensions
Length 5175 mm 203.74 in.
Width 1903 mm 74.92 in.
Height 1450 mm 57.09 in.
Wheelbase 3001 mm 118.15 in.
Front track 1628 mm 64.09 in.
Rear (Back) track 1612 mm 63.46 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4x4)
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Air suspension
Rear suspension Air suspension
Front brakesVentilated discs
Rear brakesDisc
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 235/55 R18 Y
Wheel rims size7.5J x 18
