2002 Toyota Land Cruiser (J100, facelift 2002) 4.7 V8 32V (238 Hp) 4WD Automatic

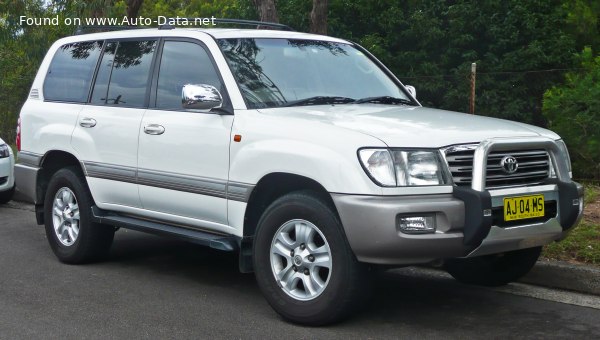

2002 Toyota Land Cruiser (J100, facelift 2002) - Photo 1
Toyota Land Cruiser (J100, facelift 2002) - Photo 2Toyota Land Cruiser (J100, facelift 2002) - Photo 3Toyota Land Cruiser (J100, facelift 2002) - Photo 4Toyota Land Cruiser (J100, facelift 2002) - Photo 5Toyota Land Cruiser (J100, facelift 2002) - Photo 6Toyota Land Cruiser (J100, facelift 2002) - Photo 7

Key specs

Toyota Land Cruiser SUV 2002, 2003, 2004, 2005, 2006, 2007

What is the body type, Toyota Land Cruiser (J100, facelift 2002)?SUV, 5 Doors, 5-7 Seats
What is the fuel economy, Toyota Land Cruiser (J100, facelift 2002) 4.7 V8 32V (238 Hp) 4WD Automatic?16.3 l/100 km
14.43 US mpg
17.33 UK mpg
6.13 km/l
How ECO is the car, Toyota Land Cruiser 4.7 V8 32V (238 Hp) 4WD Automatic?387 g/km CO2
How fast is the car, 2002 Land Cruiser (J100, facelift 2002) 4.7 V8 32V (238 Hp) 4WD Automatic?180 km/h | 111.85 mph
0-100 km/h: 11.1 sec
0-60 mph: 10.5 sec
How much power, Toyota Land Cruiser SUV 2002 4.7 V8 32V (238 Hp) 4WD Automatic?238 Hp, 434 Nm
320.1 lb.-ft.
What is the engine size, Toyota Land Cruiser SUV 2002 4.7 V8 32V (238 Hp) 4WD Automatic?4.7 l
4664 cm3
284.61 cu. in.
How many cylinders, 2002 Toyota 4.7 V8 32V (238 Hp) 4WD Automatic?8, V-engine
What is the drivetrain, Toyota Land Cruiser (J100, facelift 2002) SUV 2002 4.7 V8 32V (238 Hp) 4WD Automatic?All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
How long is this vehicle, 2002 Toyota Land Cruiser SUV?4890 mm
192.52 in.
How wide is the vehicle, 2002 Toyota Land Cruiser SUV?1940 mm
76.38 in.
What is the curb weight, 2002 Toyota Land Cruiser (J100, facelift 2002) 4.7 V8 32V (238 Hp) 4WD Automatic?2270-2525 kg
5004.49 - 5566.67 lbs.
What is the gross weight, 2002 Toyota Land Cruiser (J100, facelift 2002) 4.7 V8 32V (238 Hp) 4WD Automatic?3260 kg
7187.07 lbs.
How much trunk (boot) space, 2002 Toyota Land Cruiser SUV?1318 - 2212 l
46.54 - 78.12 cu. ft.
How many gears, What type is the gearbox, 2002 Toyota Land Cruiser (J100, facelift 2002) 4.7 V8 32V (238 Hp) 4WD Automatic?5, automatic transmission

Toyota Land Cruiser (J100, facelift 2002) 4.7 V8 32V (238 Hp) 4WD Automatic 2002, 2003, 2004, 2005, 2006, 2007 Specs

General information
BrandToyota
Model Land Cruiser
Generation Land Cruiser (J100, facelift 2002)
Modification (Engine) 4.7 V8 32V (238 Hp) 4WD Automatic
Start of production 2002 year
End of production 2007 year
Powertrain Architecture Internal Combustion engine
Body typeSUV
Seats 5-7
Doors 5
Performance specs
Fuel consumption (economy) - urban 21.5 l/100 km 10.94 US mpg
13.14 UK mpg
4.65 km/l
Fuel consumption (economy) - extra urban 13.4 l/100 km 17.55 US mpg
21.08 UK mpg
7.46 km/l
Fuel consumption (economy) - combined 16.3 l/100 km 14.43 US mpg
17.33 UK mpg
6.13 km/l
CO2 emissions387 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 - 100 km/h11.1 sec
Acceleration 0 - 62 mph11.1 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net) 10.5 sec
Maximum speed 180 km/h 111.85 mph
Weight-to-power ratio 9.5 kg/Hp, 104.8 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 191.2 Nm/tonne
Engine specs
Power 238 Hp
Power per litre 51 Hp/l
Torque 434 Nm @ 3400 rpm. 320.1 lb.-ft. @ 3400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 2UZ-FE
Engine displacement 4664 cm3 284.61 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 94 mm 3.7 in.
Piston Stroke 84 mm 3.31 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 6.8 l 7.19 US qt | 5.98 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 14.8 l 15.64 US qt | 13.02 UK qt
Space, Volume and weights
Kerb Weight 2270-2525 kg 5004.49 - 5566.67 lbs.
Max. weight 3260 kg 7187.07 lbs.
Max load 735-990 kg 1620.4 - 2182.58 lbs.
Trunk (boot) space - minimum 1318 l 46.54 cu. ft.
Trunk (boot) space - maximum 2212 l 78.12 cu. ft.
Fuel tank capacity 96 l 25.36 US gal | 21.12 UK gal
Max. roof load 100 kg 220.46 lbs.
Permitted trailer load with brakes (12%) 3500 kg 7716.18 lbs.
Permitted trailer load without brakes 750 kg 1653.47 lbs.
Permitted towbar download 140 kg 308.65 lbs.
Dimensions
Length 4890 mm 192.52 in.
Width 1940 mm 76.38 in.
Height 1880 mm 74.02 in.
Wheelbase 2850 mm 112.2 in.
Front track 1620 mm 63.78 in.
Rear (Back) track 1615 mm 63.58 in.
Ride height (ground clearance) 220 mm 8.66 in.
Minimum turning circle (turning diameter) 12.6 m 41.34 ft.
Approach angle 34°
Departure angle 26°
Ramp-over (brakeover) angle 25°
Climb angle 45°
Wading depth 700 mm 27.56 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4x4)
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Double wishbone, Trailing arm
Rear suspension Rigid axle suspension, Coil spring
Front brakesVentilated discs
Rear brakesVentilated discs
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 275/60 R18
Wheel rims size8J x 18
