2019 SsangYong Tivoli (facelift 2019) 1.6 e-XDi (136 Hp) AWD AISIN

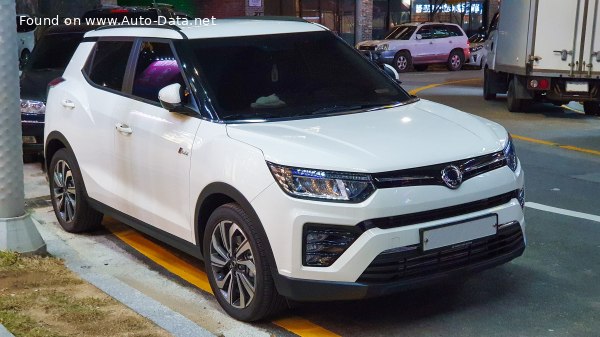

2020 SsangYong Tivoli (facelift 2019) - Photo 1
SsangYong Tivoli (facelift 2019) - Photo 2SsangYong Tivoli (facelift 2019) - Photo 3SsangYong Tivoli (facelift 2019) - Photo 4SsangYong Tivoli (facelift 2019) - Photo 5SsangYong Tivoli (facelift 2019) - Photo 6SsangYong Tivoli (facelift 2019) - Photo 7SsangYong Tivoli (facelift 2019) - Photo 8SsangYong Tivoli (facelift 2019) - Photo 9SsangYong Tivoli (facelift 2019) - Photo 10

Key specs

SsangYong Tivoli SUV, Crossover 2019, 2020

What is the body type, SsangYong Tivoli (facelift 2019)?SUV, Crossover, 5 Doors, 5 Seats
How ECO is the car, SsangYong Tivoli 1.6 e-XDi (136 Hp) AWD AISIN?Euro 6d
How fast is the car, 2019 Tivoli (facelift 2019) 1.6 e-XDi (136 Hp) AWD AISIN?172 km/h | 106.88 mph
How much power, SsangYong Tivoli SUV, Crossover 2019 1.6 e-XDi (136 Hp) AWD AISIN?136 Hp, 324 Nm
238.97 lb.-ft.
What is the engine size, SsangYong Tivoli SUV, Crossover 2019 1.6 e-XDi (136 Hp) AWD AISIN?1.6 l
1597 cm3
97.45 cu. in.
How many cylinders, 2019 SsangYong 1.6 e-XDi (136 Hp) AWD AISIN?4, Inline
What is the drivetrain, SsangYong Tivoli (facelift 2019) SUV, Crossover 2019 1.6 e-XDi (136 Hp) AWD AISIN?All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
How long is this vehicle, 2019 SsangYong Tivoli SUV, Crossover?4225 mm
166.34 in.
How wide is the vehicle, 2019 SsangYong Tivoli SUV, Crossover?1810 mm
71.26 in.
What is the curb weight, 2019 SsangYong Tivoli (facelift 2019) 1.6 e-XDi (136 Hp) AWD AISIN?1525-1607 kg
3362.05 - 3542.83 lbs.
What is the gross weight, 2019 SsangYong Tivoli (facelift 2019) 1.6 e-XDi (136 Hp) AWD AISIN?2080 kg
4585.62 lbs.
How much trunk (boot) space, 2019 SsangYong Tivoli SUV, Crossover?311 - 1002 l
10.98 - 35.39 cu. ft.
How many gears, What type is the gearbox, 2019 SsangYong Tivoli (facelift 2019) 1.6 e-XDi (136 Hp) AWD AISIN?6, automatic transmission AISIN

SsangYong Tivoli (facelift 2019) 1.6 e-XDi (136 Hp) AWD AISIN 2019, 2020 Specs

General information
BrandSsangYong
Model Tivoli
Generation Tivoli (facelift 2019)
Modification (Engine) 1.6 e-XDi (136 Hp) AWD AISIN
Start of production October, 2019 year
End of production December, 2020 year
Powertrain Architecture Internal Combustion engine
Body typeSUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel Type Diesel
Maximum speed 172 km/h 106.88 mph
Emission standard Euro 6d
Weight-to-power ratio 11.2 kg/Hp, 89.2 Hp/tonne
Weight-to-torque ratio 4.7 kg/Nm, 212.5 Nm/tonne
Engine specs
Power 136 Hp @ 4000 rpm.
Power per litre 85.2 Hp/l
Torque 324 Nm @ 1500-2500 rpm. 238.97 lb.-ft. @ 1500-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code D16DTF
Engine displacement 1597 cm3 97.45 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 76 mm 2.99 in.
Piston Stroke 88 mm 3.46 in.
Compression ratio 15.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5 l 5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.5 l 7.93 US qt | 6.6 UK qt
Engine systemsStart & Stop System
Particulate filter
Space, Volume and weights
Kerb Weight 1525-1607 kg 3362.05 - 3542.83 lbs.
Max. weight 2080 kg 4585.62 lbs.
Max load 473-555 kg 1042.79 - 1223.57 lbs.
Trunk (boot) space - minimum 311 l 10.98 cu. ft.
Trunk (boot) space - maximum 1002 l 35.39 cu. ft.
Fuel tank capacity 47 l 12.42 US gal | 10.34 UK gal
Permitted trailer load with brakes (12%) 1500 kg 3306.93 lbs.
Permitted trailer load without brakes 500 kg 1102.31 lbs.
Permitted towbar download 80 kg 176.37 lbs.
Dimensions
Length 4225 mm 166.34 in.
Width 1810 mm 71.26 in.
Height 1621 mm 63.82 in.
Wheelbase 2600 mm 102.36 in.
Front track 1555 mm 61.22 in.
Rear (Back) track 1555 mm 61.22 in.
Front overhang 880 mm 34.65 in.
Rear overhang 745 mm 29.33 in.
Ride height (ground clearance) 156 mm 6.14 in.
Minimum turning circle (turning diameter) 10.6 m 34.78 ft.
Approach angle 18°
Departure angle 27°
Ramp-over (brakeover) angle 14°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4x4)
Number of gears and type of gearbox 6 gears, automatic transmission AISIN
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakesVentilated discs
Rear brakesDisc
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/50 R18
Wheel rims size18
