2011 Mitsubishi Shogun IV (5-door, facelift 2011) 3.2 DI-D (197 Hp) Super Select 4WD

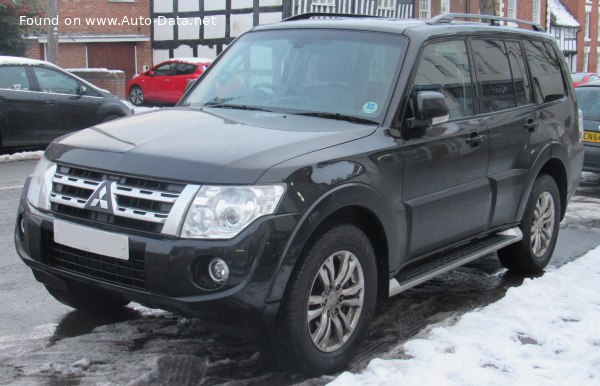

2012 Mitsubishi Shogun IV (5-door, facelift 2011) - Photo 1

Key specs

Mitsubishi Shogun SUV 2011, 2012, 2013, 2014

What is the body type, Mitsubishi Shogun IV (5-door, facelift 2011)?SUV, 5 Doors, 7 Seats
What is the fuel economy, Mitsubishi Shogun IV (5-door, facelift 2011) 3.2 DI-D (197 Hp) Super Select 4WD?8.1 l/100 km
29.04 US mpg
34.87 UK mpg
12.35 km/l
How ECO is the car, Mitsubishi Shogun 3.2 DI-D (197 Hp) Super Select 4WD?213 g/km CO2
Euro 5
How fast is the car, 2011 Shogun IV (5-door, facelift 2011) 3.2 DI-D (197 Hp) Super Select 4WD?180 km/h | 111.85 mph
0-100 km/h: 10.5 sec
0-60 mph: 10 sec
How much power, Mitsubishi Shogun SUV 2011 3.2 DI-D (197 Hp) Super Select 4WD?197 Hp, 441 Nm
325.26 lb.-ft.
What is the engine size, Mitsubishi Shogun SUV 2011 3.2 DI-D (197 Hp) Super Select 4WD?3.2 l
3200 cm3
195.28 cu. in.
How many cylinders, 2011 Mitsubishi 3.2 DI-D (197 Hp) Super Select 4WD?4, Inline
What is the drivetrain, Mitsubishi Shogun IV (5-door, facelift 2011) SUV 2011 3.2 DI-D (197 Hp) Super Select 4WD?All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
How long is this vehicle, 2011 Mitsubishi Shogun SUV?4900 mm
192.91 in.
How wide is the vehicle, 2011 Mitsubishi Shogun SUV?1875 mm
73.82 in.
What is the curb weight, 2011 Mitsubishi Shogun IV (5-door, facelift 2011) 3.2 DI-D (197 Hp) Super Select 4WD?2275-2300 kg
5015.52 - 5070.63 lbs.
What is the gross weight, 2011 Mitsubishi Shogun IV (5-door, facelift 2011) 3.2 DI-D (197 Hp) Super Select 4WD?3030 kg
6680.01 lbs.
How much trunk (boot) space, 2011 Mitsubishi Shogun SUV?1790 l
63.21 cu. ft.
How many gears, What type is the gearbox, 2011 Mitsubishi Shogun IV (5-door, facelift 2011) 3.2 DI-D (197 Hp) Super Select 4WD?5, manual transmission

Mitsubishi Shogun IV (5-door, facelift 2011) 3.2 DI-D (197 Hp) Super Select 4WD 2011, 2012, 2013, 2014 Specs

General information
BrandMitsubishi
Model Shogun
Generation Shogun IV (5-door, facelift 2011)
Modification (Engine) 3.2 DI-D (197 Hp) Super Select 4WD
Start of production 2011 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body typeSUV
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) - urban (NEDC) 9.6 l/100 km 24.5 US mpg
29.43 UK mpg
10.42 km/l
Fuel consumption (economy) - extra urban (NEDC) 7.2 l/100 km 32.67 US mpg
39.23 UK mpg
13.89 km/l
Fuel consumption (economy) - combined (NEDC) 8.1 l/100 km 29.04 US mpg
34.87 UK mpg
12.35 km/l
CO2 emissions (NEDC)213 g/km
Fuel Type Diesel
Acceleration 0 - 100 km/h10.5 sec
Acceleration 0 - 62 mph10.5 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net) 10 sec
Maximum speed 180 km/h 111.85 mph
Emission standard Euro 5
Weight-to-power ratio 11.5 kg/Hp, 86.6 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 193.8 Nm/tonne
Engine specs
Power 197 Hp @ 3800 rpm.
Power per litre 61.6 Hp/l
Torque 441 Nm @ 2000 rpm. 325.26 lb.-ft. @ 2000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 4M41
Engine displacement 3200 cm3 195.28 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 98.5 mm 3.88 in.
Piston Stroke 105 mm 4.13 in.
Compression ratio 16:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 9.8 l 10.36 US qt | 8.62 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l 9.51 US qt | 7.92 UK qt
Engine systemsParticulate filter
Space, Volume and weights
Kerb Weight 2275-2300 kg 5015.52 - 5070.63 lbs.
Max. weight 3030 kg 6680.01 lbs.
Max load 730-755 kg 1609.37 - 1664.49 lbs.
Trunk (boot) space - maximum 1790 l 63.21 cu. ft.
Fuel tank capacity 88 l 23.25 US gal | 19.36 UK gal
Max. roof load 100 kg 220.46 lbs.
Permitted trailer load with brakes (12%) 3500 kg 7716.18 lbs.
Permitted trailer load without brakes 750 kg 1653.47 lbs.
Permitted towbar download 135 kg 297.62 lbs.
Dimensions
Length 4900 mm 192.91 in.
Width 1875 mm 73.82 in.
Height 1890 mm 74.41 in.
Wheelbase 2780 mm 109.45 in.
Front track 1570 mm 61.81 in.
Rear (Back) track 1570 mm 61.81 in.
Front overhang 765 mm 30.12 in.
Rear overhang 1355 mm 53.35 in.
Ride height (ground clearance) 220 mm 8.66 in.
Minimum turning circle (turning diameter) 11.4 m 37.4 ft.
Approach angle 34.5°
Departure angle 24.5°
Ramp-over (brakeover) angle 22.2°
Climb angle 35°
Wading depth 700 mm 27.56 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4x4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer, Coil spring
Front brakesVentilated discs, 332 mm
Rear brakesVentilated discs, 332 mm
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 265/50 R20
Wheel rims size8.5J x 20
