2020 Kia Ceed III Sportswagon 1.6 GDi (141 Hp) Plug-in Hybrid DCT

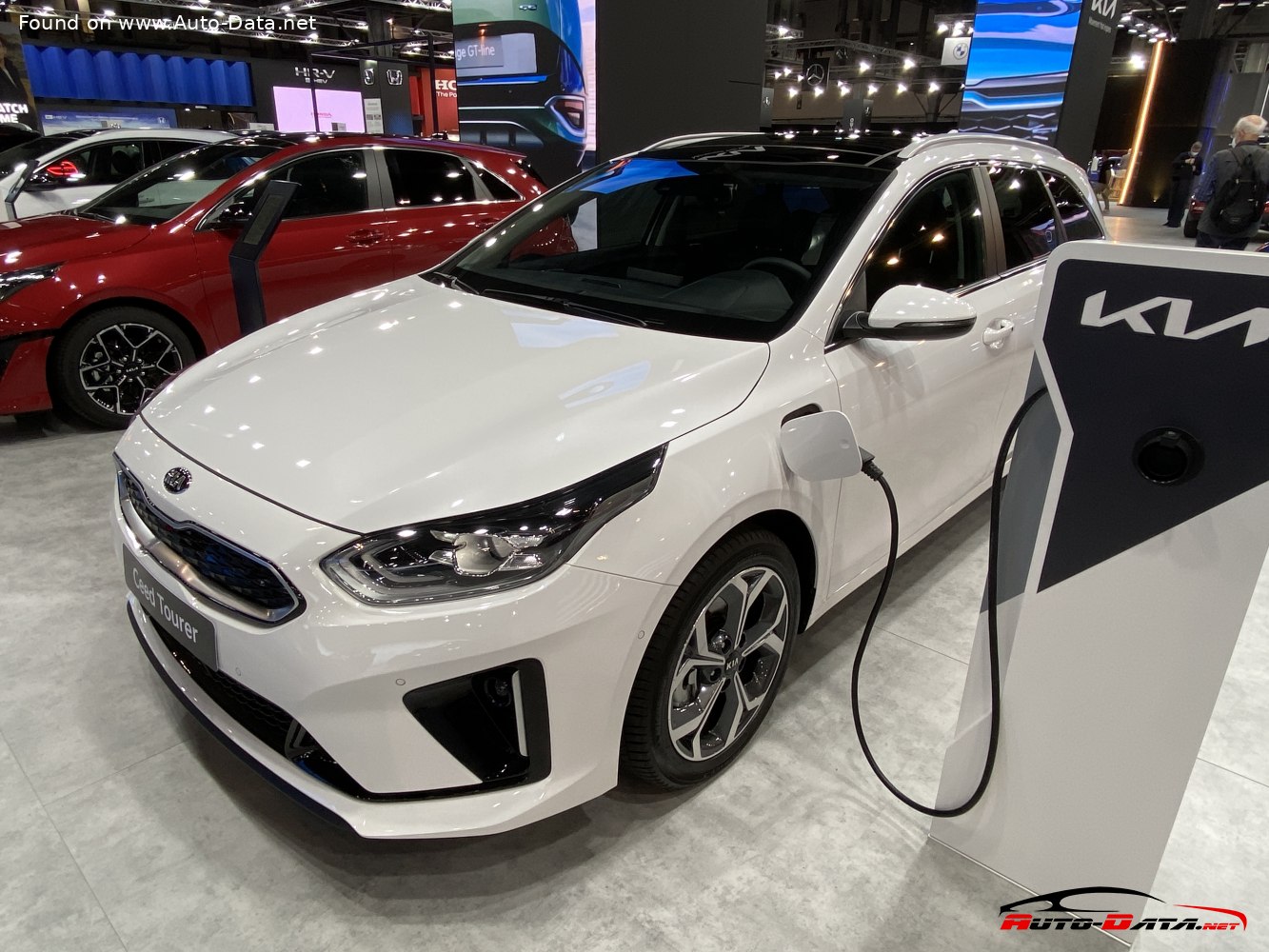

2018 Kia Ceed III Sportswagon - Photo 1

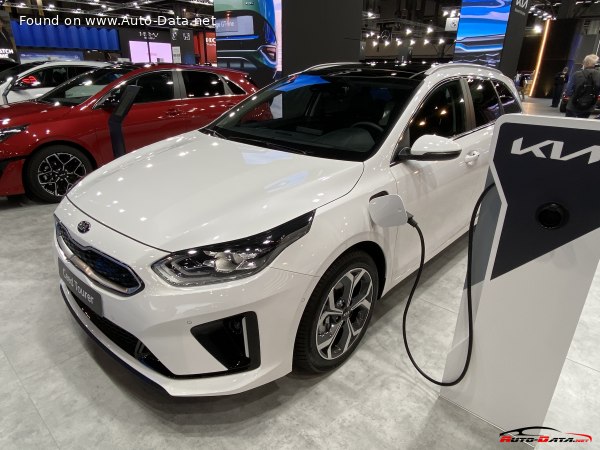

Kia Ceed III Sportswagon - Photo 2Kia Ceed III Sportswagon - Photo 3Kia Ceed III Sportswagon - Photo 4Kia Ceed III Sportswagon - Photo 5Kia Ceed III Sportswagon - Photo 6

Key specs

Kia Cee'd Station wagon (estate) 2020, 2021

What is the body type, Kia Ceed III Sportswagon?Station wagon (estate), 5 Doors, 5 Seats
What is the fuel economy, Kia Ceed III Sportswagon 1.6 GDi (141 Hp) Plug-in Hybrid DCT?1.5 l/100 km
156.81 US mpg
188.32 UK mpg
66.67 km/l
How ECO is the car, Kia Cee'd 1.6 GDi (141 Hp) Plug-in Hybrid DCT?33 g/km CO2
Euro 6d
What is the range of pure electric driving, 1.6 GDi (141 Hp) Plug-in Hybrid DCT?55-60 km
34.18 - 37.28 mi
What is electricity consumption, Kia Ceed III Sportswagon 1.6 GDi (141 Hp) Plug-in Hybrid DCT?9.3-11.3 kWh/100 km
14.97 - 18.19 kWh/100 mi
225 - 185 MPGe
10.8 - 8.8 km/kWh
6.7 - 5.5 mi/kWh
How fast is the car, 2020 Ceed III Sportswagon 1.6 GDi (141 Hp) Plug-in Hybrid DCT?171 km/h | 106.25 mph
0-100 km/h: 10.8 sec
0-60 mph: 10.5 sec
How much power, Kia Cee'd Station wagon (estate) 2020 1.6 GDi (141 Hp) Plug-in Hybrid DCT?141 Hp, 265 Nm
195.45 lb.-ft.
What is the engine size, Kia Cee'd Station wagon (estate) 2020 1.6 GDi (141 Hp) Plug-in Hybrid DCT?1.6 l
1580 cm3
96.42 cu. in.
How many cylinders, 2020 Kia 1.6 GDi (141 Hp) Plug-in Hybrid DCT?4, Inline
What is the drivetrain, Kia Ceed III Sportswagon Station wagon (estate) 2020 1.6 GDi (141 Hp) Plug-in Hybrid DCT?Front wheel drive. PHEV (Plug-in Hybrid Electric Vehicle). The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
How long is this vehicle, 2020 Kia Cee'd Station wagon (estate)?4605 mm
181.3 in.
How wide is the vehicle, 2020 Kia Cee'd Station wagon (estate)?1800 mm
70.87 in.
What is the curb weight, 2020 Kia Ceed III Sportswagon 1.6 GDi (141 Hp) Plug-in Hybrid DCT?1458-1526 kg
3214.34 - 3364.25 lbs.
What is the gross weight, 2020 Kia Ceed III Sportswagon 1.6 GDi (141 Hp) Plug-in Hybrid DCT?2030 kg
4475.38 lbs.
How much trunk (boot) space, 2020 Kia Cee'd Station wagon (estate)?437 - 1506 l
15.43 - 53.18 cu. ft.
How many gears, What type is the gearbox, 2020 Kia Ceed III Sportswagon 1.6 GDi (141 Hp) Plug-in Hybrid DCT?6, automatic transmission DCT

Kia Ceed III Sportswagon 1.6 GDi (141 Hp) Plug-in Hybrid DCT 2020, 2021 Specs

General information
BrandKia
Model Cee'd
Generation Ceed III Sportswagon
Modification (Engine) 1.6 GDi (141 Hp) Plug-in Hybrid DCT
Start of production January, 2020 year
End of production September, 2021 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body typeStation wagon (estate)
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 1.5 l/100 km 156.81 US mpg
188.32 UK mpg
66.67 km/l
CO2 emissions (WLTP)33 g/km
Fuel consumption (economy) - combined (NEDC, WLTP equivalent) 1.1-1.3 l/100 km 213.83 - 180.93 US mpg
256.8 - 217.29 UK mpg
90.91 - 76.92 km/l
CO2 emissions (NEDC, WLTP equivalent)28-30 g/km
Fuel Type Petrol / electricity
Acceleration 0 - 100 km/h10.8 sec
Acceleration 0 - 62 mph10.8 sec
Acceleration 0 - 60 mph 10.5 sec
Maximum speed 171 km/h 106.25 mph
Emission standard Euro 6d
Weight-to-power ratio 10.3 kg/Hp, 96.7 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 181.8 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 8.9 kWh
Battery voltage 360 V
Battery technology Lithium-polymer (LiPo)
Battery weight 117 kg 257.94 lbs.
Battery location Under the rear seats
Under the trunk
All-electric range (NEDC, WLTP equivalent) 55-60 km 34.18 - 37.28 mi
Average Energy consumption (NEDC, WLTP equivalent) 9.3-11.3 kWh/100 km 14.97 - 18.19 kWh/100 mi
225 - 185 MPGe
10.8 - 8.8 km/kWh
6.7 - 5.5 mi/kWh
Max speed (electric) 120 km/h 74.56 mph
Charging portsLog in to see.Log in to see.
Electric motor 1
Electric motor power 60 Hp @ 1798-2500 rpm.
Electric motor Torque 170 Nm @ 0-1798 rpm. 125.39 lb.-ft. @ 0-1798 rpm.
Electric motor location Between the combustion engine and the transmission
System power 141 Hp @ 5700 rpm.
System torque 265 Nm @ 1000-2400 rpm. 195.45 lb.-ft. @ 1000-2400 rpm.
Internal combustion engine specs
Power 105 Hp @ 5700 rpm.
Power per litre 66.5 Hp/l
Torque 147 Nm @ 4000 rpm. 108.42 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code Smartstream / G4LE
Engine displacement 1580 cm3 96.42 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 72 mm 2.83 in.
Piston Stroke 97 mm 3.82 in.
Compression ratio 13:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual CVVT
Engine oil capacity 3.8 l 4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.8 l 7.19 US qt | 5.98 UK qt
Engine systemsStart & Stop System
Particulate filter
Space, Volume and weights
Kerb Weight 1458-1526 kg 3214.34 - 3364.25 lbs.
Max. weight 2030 kg 4475.38 lbs.
Max load 504-572 kg 1111.13 - 1261.04 lbs.
Trunk (boot) space - minimum 437 l 15.43 cu. ft.
Trunk (boot) space - maximum 1506 l 53.18 cu. ft.
Fuel tank capacity 37 l 9.77 US gal | 8.14 UK gal
Max. roof load 80 kg 176.37 lbs.
Permitted trailer load with brakes (12%) 1300 kg 2866.01 lbs.
Permitted trailer load without brakes 600 kg 1322.77 lbs.
Permitted towbar download 75 kg 165.35 lbs.
Dimensions
Length 4605 mm 181.3 in.
Width 1800 mm 70.87 in.
Width including mirrors 2055 mm 80.91 in.
Height 1465 mm 57.68 in.
Wheelbase 2650 mm 104.33 in.
Front track 1565-1573 mm 61.61 - 61.93 in.
Rear (Back) track 1559-1567 mm 61.38 - 61.69 in.
Front overhang 885 mm 34.84 in.
Rear overhang 1070 mm 42.13 in.
Minimum turning circle (turning diameter) 10.4 m 34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission DCT
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakesVentilated discs, 305x25 mm
Rear brakesDisc, 284x10 mm
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16; 225/45 R17
Wheel rims size6.5J x 16; 7J x 17
