2016 Hyundai IONIQ 30.5 kWh (120 Hp) Electric

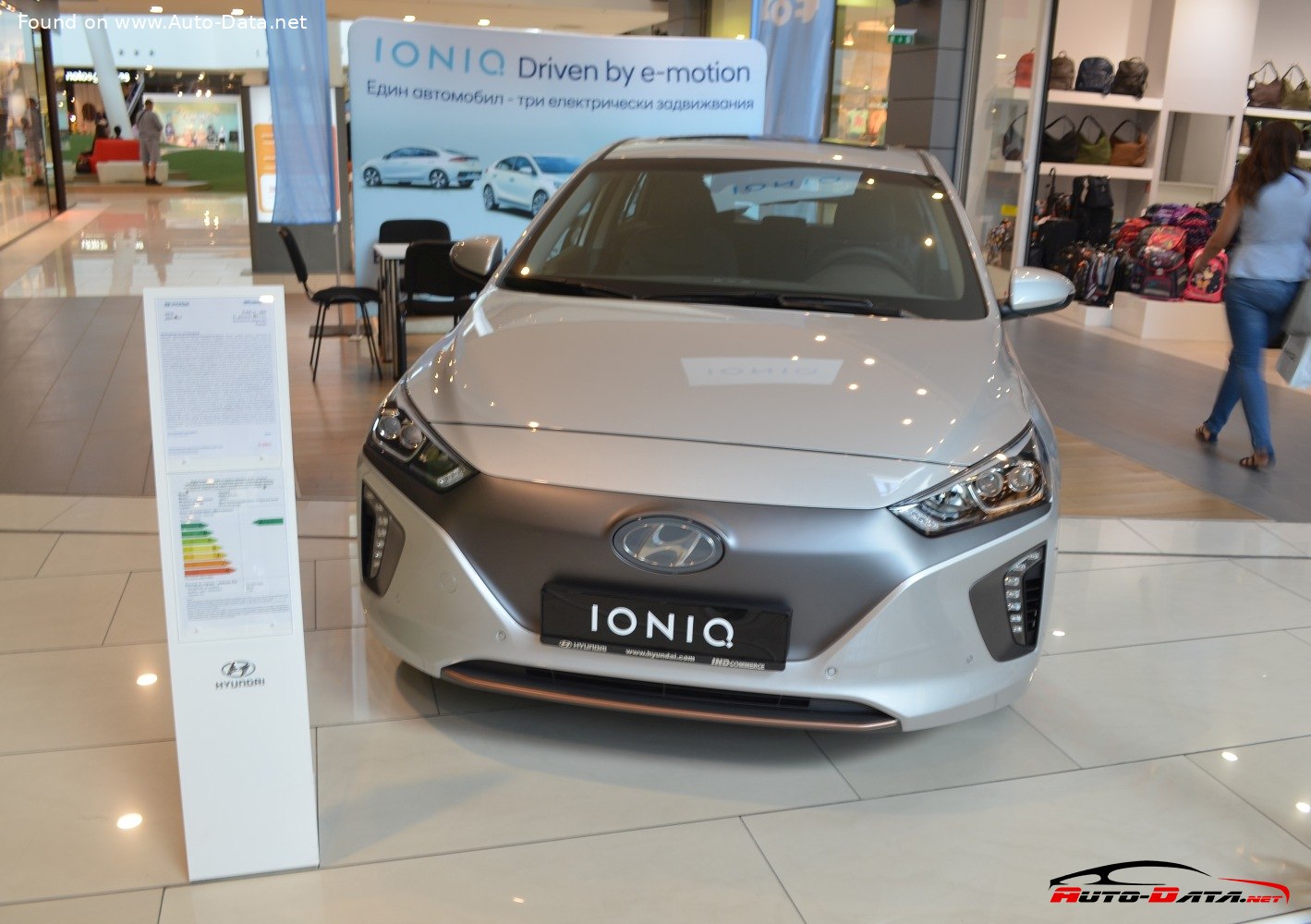

2017 Hyundai IONIQ - Photo 1

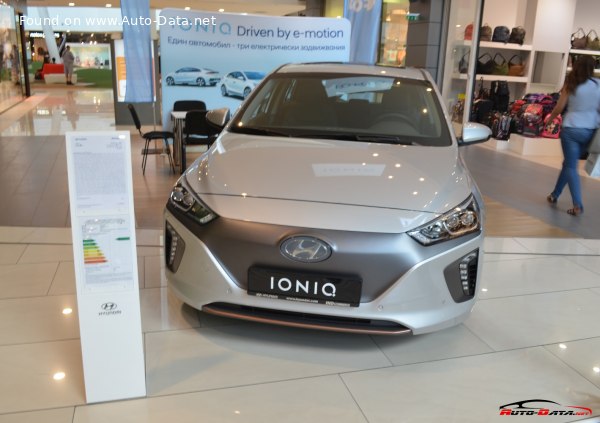

Hyundai IONIQ - Photo 2Hyundai IONIQ - Photo 3Hyundai IONIQ - Photo 4Hyundai IONIQ - Photo 5Hyundai IONIQ - Photo 6Hyundai IONIQ - Photo 7Hyundai IONIQ - Photo 8Hyundai IONIQ - Photo 9Hyundai IONIQ - Photo 10

Key specs

Hyundai IONIQ Liftback 2016, 2017, 2018, 2019

What is the body type, Hyundai IONIQ?Liftback, 5 Doors, 5 Seats
What is the range of pure electric driving, 30.5 kWh (120 Hp) Electric?280 km
173.98 mi
What is electricity consumption, Hyundai IONIQ 30.5 kWh (120 Hp) Electric?11.5 kWh/100 km
18.51 kWh/100 mi
182 MPGe
8.7 km/kWh
5.4 mi/kWh
How fast is the car, 2016 IONIQ 30.5 kWh (120 Hp) Electric?165 km/h | 102.53 mph
0-100 km/h: 9.9 sec
0-60 mph: 9.4 sec
How much power, Hyundai IONIQ Liftback 2016 30.5 kWh (120 Hp) Electric?120 Hp, 295 Nm
217.58 lb.-ft.
What is the drivetrain, Hyundai IONIQ Liftback 2016 30.5 kWh (120 Hp) Electric?Front wheel drive. BEV (Electric Vehicle). One electric motor drives the front wheels.
How long is this vehicle, 2016 Hyundai IONIQ Liftback?4470 mm
175.98 in.
How wide is the vehicle, 2016 Hyundai IONIQ Liftback?1820 mm
71.65 in.
What is the curb weight, 2016 Hyundai IONIQ 30.5 kWh (120 Hp) Electric?1420 kg
3130.56 lbs.
What is the gross weight, 2016 Hyundai IONIQ 30.5 kWh (120 Hp) Electric?1880 kg
4144.69 lbs.
How much trunk (boot) space, 2016 Hyundai IONIQ Liftback?455 - 1410 l
16.07 - 49.79 cu. ft.
How many gears, What type is the gearbox, 2016 Hyundai IONIQ 30.5 kWh (120 Hp) Electric?1, automatic transmission

Hyundai IONIQ 30.5 kWh (120 Hp) Electric 2016, 2017, 2018, 2019 Specs

General information
BrandHyundai
Model IONIQ
Generation IONIQ
Modification (Engine) 30.5 kWh (120 Hp) Electric
Start of production 2016 year
End of production 2019 year
Powertrain Architecture BEV (Electric Vehicle)
Body typeLiftback
Seats 5
Doors 5
Performance specs
Fuel Type Electricity
Acceleration 0 - 100 km/h9.9 sec
Acceleration 0 - 62 mph9.9 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net) 9.4 sec
Maximum speed 165 km/h 102.53 mph
Weight-to-power ratio 11.8 kg/Hp, 84.5 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 207.7 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 30.5 kWh
Net (usable) battery capacity 28 kWh
Battery voltage 360 V
Battery technology Lithium-polymer (LiPo)
Battery weight 272 kg 599.66 lbs.
Battery location Below the floor, under the rear seats
Inside the trunk
All-electric range 280 km 173.98 mi
Average Energy consumption 11.5 kWh/100 km 18.51 kWh/100 mi
182 MPGe
8.7 km/kWh
5.4 mi/kWh
Charging portsLog in to see.Log in to see.
Electric motor 1
Electric motor power 120 Hp
Electric motor Torque 295 Nm 217.58 lb.-ft.
Electric motor model/code EM10
Electric motor location Front axle, Transverse
Electric motor type Synchronous
System power 120 Hp
System torque 295 Nm 217.58 lb.-ft.
Space, Volume and weights
Kerb Weight 1420 kg 3130.56 lbs.
Max. weight 1880 kg 4144.69 lbs.
Max load 460 kg 1014.13 lbs.
Trunk (boot) space - minimum 455 l 16.07 cu. ft.
Trunk (boot) space - maximum 1410 l 49.79 cu. ft.
Dimensions
Length 4470 mm 175.98 in.
Width 1820 mm 71.65 in.
Height 1450 mm 57.09 in.
Wheelbase 2700 mm 106.3 in.
Front track 1555 mm 61.22 in.
Rear (Back) track 1564 mm 61.57 in.
Ride height (ground clearance) 140 mm 5.51 in.
Drag coefficient (Cd) 0.24
Minimum turning circle (turning diameter) 10.6 m 34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the front wheels.
Drive wheel Front wheel drive
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakesVentilated discs
Rear brakesDisc
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16
Wheel rims size6.5J x 16
