2004 Honda Legend IV (KB1) 3.5 V6 VTEC (295 Hp) SH-AWD

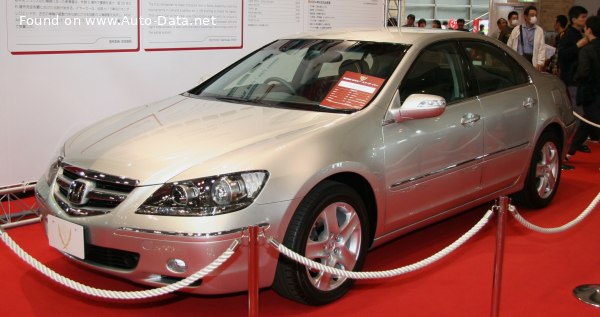

2005 Honda Legend IV (KB1) - Photo 1
Honda Legend IV (KB1) - Photo 2Honda Legend IV (KB1) - Photo 3Honda Legend IV (KB1) - Photo 4Honda Legend IV (KB1) - Photo 5Honda Legend IV (KB1) - Photo 6Honda Legend IV (KB1) - Photo 7Honda Legend IV (KB1) - Photo 8Honda Legend IV (KB1) - Photo 9Honda Legend IV (KB1) - Photo 10

Key specs

Honda Legend Sedan 2004, 2005, 2006, 2007, 2008

What is the body type, Honda Legend IV (KB1)?Sedan, 4 Doors, 5 Seats
What is the fuel economy, Honda Legend IV (KB1) 3.5 V6 VTEC (295 Hp) SH-AWD?11.9 l/100 km
19.77 US mpg
23.74 UK mpg
8.4 km/l
How fast is the car, 2004 Legend IV (KB1) 3.5 V6 VTEC (295 Hp) SH-AWD?250 km/h | 155.34 mph
0-100 km/h: 7.3 sec
0-60 mph: 6.9 sec
How much power, Honda Legend Sedan 2004 3.5 V6 VTEC (295 Hp) SH-AWD?295 Hp, 351 Nm
258.88 lb.-ft.
What is the engine size, Honda Legend Sedan 2004 3.5 V6 VTEC (295 Hp) SH-AWD?3.5 l
3471 cm3
211.81 cu. in.
How many cylinders, 2004 Honda 3.5 V6 VTEC (295 Hp) SH-AWD?6, V-engine
What is the drivetrain, Honda Legend IV (KB1) Sedan 2004 3.5 V6 VTEC (295 Hp) SH-AWD?All wheel drive (4x4). Internal Combustion engine.
How long is this vehicle, 2004 Honda Legend Sedan?4957 mm
195.16 in.
How wide is the vehicle, 2004 Honda Legend Sedan?1845 mm
72.64 in.
What is the curb weight, 2004 Honda Legend IV (KB1) 3.5 V6 VTEC (295 Hp) SH-AWD?1860 kg
4100.6 lbs.
How much trunk (boot) space, 2004 Honda Legend Sedan?452 l
15.96 cu. ft.
How many gears, What type is the gearbox, 2004 Honda Legend IV (KB1) 3.5 V6 VTEC (295 Hp) SH-AWD?5, automatic transmission

Honda Legend IV (KB1) 3.5 V6 VTEC (295 Hp) SH-AWD 2004, 2005, 2006, 2007, 2008 Specs

General information
BrandHonda
Model Legend
Generation Legend IV (KB1)
Modification (Engine) 3.5 V6 VTEC (295 Hp) SH-AWD
Start of production 2004 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body typeSedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) - urban 17 l/100 km 13.84 US mpg
16.62 UK mpg
5.88 km/l
Fuel consumption (economy) - extra urban 8.9 l/100 km 26.43 US mpg
31.74 UK mpg
11.24 km/l
Fuel consumption (economy) - combined 11.9 l/100 km 19.77 US mpg
23.74 UK mpg
8.4 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 - 100 km/h7.3 sec
Acceleration 0 - 62 mph7.3 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net) 6.9 sec
Maximum speed 250 km/h 155.34 mph
Weight-to-power ratio 6.3 kg/Hp, 158.6 Hp/tonne
Weight-to-torque ratio 5.3 kg/Nm, 188.7 Nm/tonne
Engine specs
Power 295 Hp @ 6200 rpm.
Power per litre 85 Hp/l
Torque 351 Nm @ 5000 rpm. 258.88 lb.-ft. @ 5000 rpm.
Engine layout Front, Transverse
Engine Model/Code J35A8
Engine displacement 3471 cm3 211.81 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 89 mm 3.5 in.
Piston Stroke 93 mm 3.66 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.3 l 4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l 6.34 US qt | 5.28 UK qt
Space, Volume and weights
Kerb Weight 1860 kg 4100.6 lbs.
Trunk (boot) space - maximum 452 l 15.96 cu. ft.
Fuel tank capacity 73 l 19.28 US gal | 16.06 UK gal
Dimensions
Length 4957 mm 195.16 in.
Width 1845 mm 72.64 in.
Height 1450 mm 57.09 in.
Wheelbase 2800 mm 110.24 in.
Front track 1575 mm 62.01 in.
Rear (Back) track 1585 mm 62.4 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4x4)
Number of gears and type of gearbox 5 gears, automatic transmission
Front brakesVentilated discs
Rear brakesDisc
Assisting systemsABS (Anti-lock braking system)
Tires size 235/50 R17; 245/45 R18
Wheel rims size7J x 17; 8J x 18
