2017 Holden Colorado II Crew Cab (facelift 2017) 2.8 Duramax (200 Hp) 4x4 Automatic

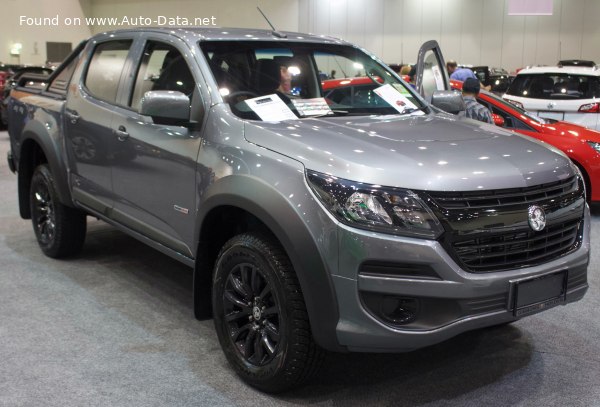

2017 Holden Colorado II Crew Cab (facelift 2017) - Photo 1

Key specs

Holden Colorado Pick-up 2017, 2018, 2019, 2020

What is the body type, Holden Colorado II Crew Cab (facelift 2017)?Pick-up, 4 Doors, 5 Seats
How much power, Holden Colorado Pick-up 2017 2.8 Duramax (200 Hp) 4x4 Automatic?200 Hp, 500 Nm
368.78 lb.-ft.
What is the engine size, Holden Colorado Pick-up 2017 2.8 Duramax (200 Hp) 4x4 Automatic?2.8 l
2776 cm3
169.4 cu. in.
How many cylinders, 2017 Holden 2.8 Duramax (200 Hp) 4x4 Automatic?4, Inline
What is the drivetrain, Holden Colorado II Crew Cab (facelift 2017) Pick-up 2017 2.8 Duramax (200 Hp) 4x4 Automatic?All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
How long is this vehicle, 2017 Holden Colorado Pick-up?5361 mm
211.06 in.
How wide is the vehicle, 2017 Holden Colorado Pick-up?1872 mm
73.7 in.
What is the curb weight, 2017 Holden Colorado II Crew Cab (facelift 2017) 2.8 Duramax (200 Hp) 4x4 Automatic?2065-2163 kg
4552.55 - 4768.6 lbs.
What is the gross weight, 2017 Holden Colorado II Crew Cab (facelift 2017) 2.8 Duramax (200 Hp) 4x4 Automatic?3150 kg
6944.56 lbs.
How many gears, What type is the gearbox, 2017 Holden Colorado II Crew Cab (facelift 2017) 2.8 Duramax (200 Hp) 4x4 Automatic?6, automatic transmission

Holden Colorado II Crew Cab (facelift 2017) 2.8 Duramax (200 Hp) 4x4 Automatic 2017, 2018, 2019, 2020 Specs

General information
BrandHolden
Model Colorado
Generation Colorado II Crew Cab (facelift 2017)
Modification (Engine) 2.8 Duramax (200 Hp) 4x4 Automatic
Start of production 2017 year
End of production 2020 year
Powertrain Architecture Internal Combustion engine
Body typePick-up
Seats 5
Doors 4
Performance specs
Fuel Type Diesel
Weight-to-power ratio 10.3 kg/Hp, 96.9 Hp/tonne
Weight-to-torque ratio 4.1 kg/Nm, 242.1 Nm/tonne
Engine specs
Power 200 Hp @ 3600 rpm.
Power per litre 72 Hp/l
Torque 500 Nm @ 2000 rpm. 368.78 lb.-ft. @ 2000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Duramax
Engine displacement 2776 cm3 169.4 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 94 mm 3.7 in.
Piston Stroke 100 mm 3.94 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.6 l 5.92 US qt | 4.93 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l 9.51 US qt | 7.92 UK qt
Space, Volume and weights
Kerb Weight 2065-2163 kg 4552.55 - 4768.6 lbs.
Max. weight 3150 kg 6944.56 lbs.
Max load 987-1085 kg 2175.96 - 2392.02 lbs.
Fuel tank capacity 76 l 20.08 US gal | 16.72 UK gal
Permitted trailer load with brakes (12%) 3500 kg 7716.18 lbs.
Permitted trailer load without brakes 750 kg 1653.47 lbs.
Permitted towbar download 350 kg 771.62 lbs.
Dimensions
Length 5361 mm 211.06 in.
Width 1872 mm 73.7 in.
Width including mirrors 2132 mm 83.94 in.
Height 1800 mm 70.87 in.
Wheelbase 3096 mm 121.89 in.
Front track 1570 mm 61.81 in.
Rear (Back) track 1570 mm 61.81 in.
Front overhang 957 mm 37.68 in.
Rear overhang 1308 mm 51.5 in.
Ride height (ground clearance) 215 mm 8.46 in.
Minimum turning circle (turning diameter) 12.7 m 41.67 ft.
Approach angle 28.3°
Departure angle 23.1°
Ramp-over (brakeover) angle 22.1°
Wading depth 600 mm 23.62 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4x4)
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Leaf spring
Front brakesVentilated discs, 300 mm
Rear brakesDrum, 295 mm
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/70 R16 111S; 255/65 R17 110S; 265/60 R18 110T
Wheel rims size6.5J x 16; 7J x 17; 7.5J x 18
