2020 Ford Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic

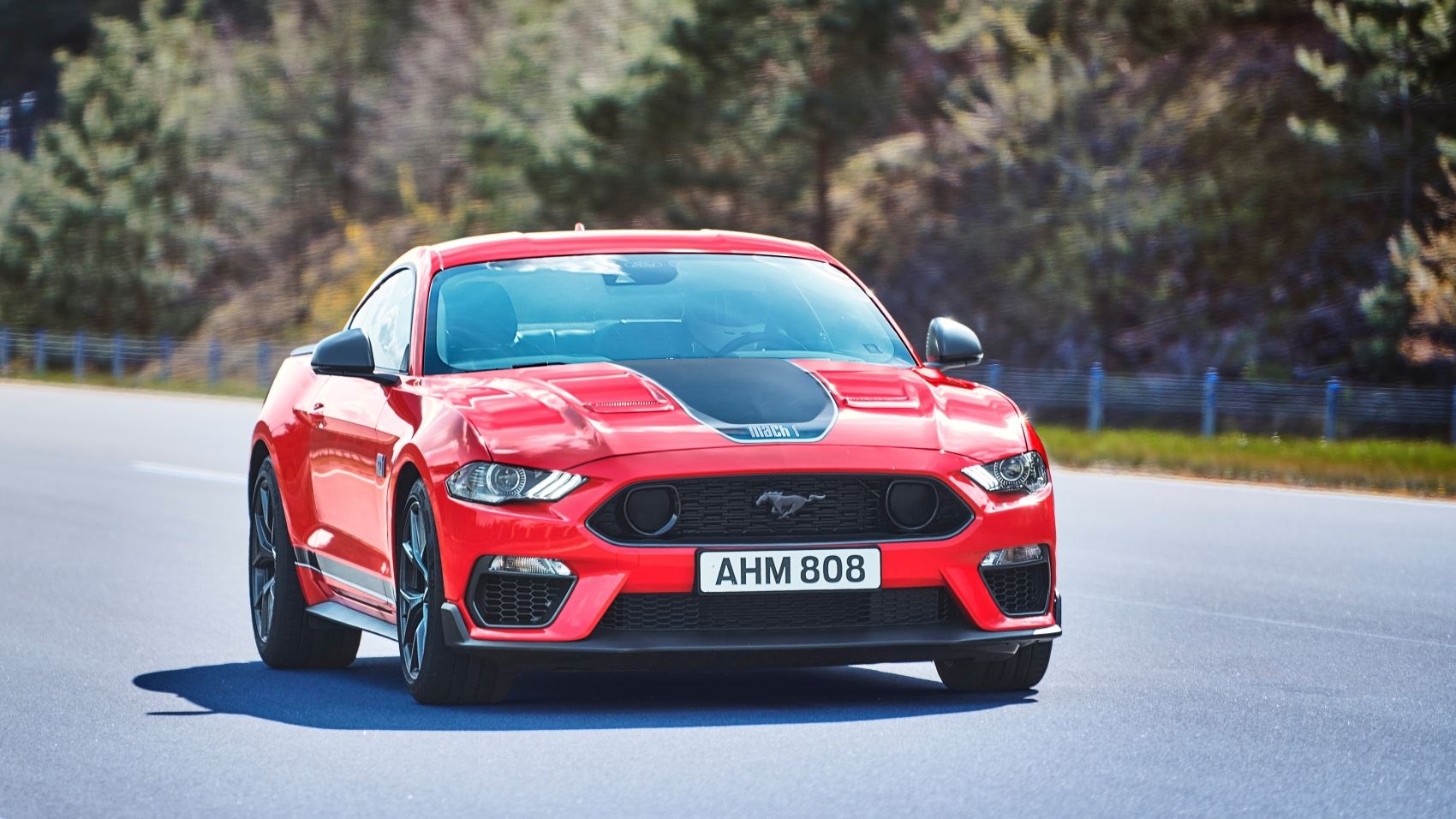

2018 Ford Mustang VI (facelift 2017) - Photo 1
Ford Mustang VI (facelift 2017) - Photo 2Ford Mustang VI (facelift 2017) - Photo 3Ford Mustang VI (facelift 2017) - Photo 4Ford Mustang VI (facelift 2017) - Photo 5Ford Mustang VI (facelift 2017) - Photo 6Ford Mustang VI (facelift 2017) - Photo 7Ford Mustang VI (facelift 2017) - Photo 8Ford Mustang VI (facelift 2017) - Photo 9Ford Mustang VI (facelift 2017) - Photo 10

Key specs

Ford Mustang Fastback 2020, 2021, 2022, 2023

What is the body type, Ford Mustang VI (facelift 2017)?Fastback, 2 Doors, 4 Seats
What is the fuel economy, Ford Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?11.7 l/100 km
20.1 US mpg
24.14 UK mpg
8.55 km/l
How ECO is the car, Ford Mustang Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?270 g/km CO2
How fast is the car, 2020 Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?249 km/h | 154.72 mph
0-100 km/h: 4.4 sec
0-60 mph: 4.2 sec
How much power, Ford Mustang Fastback 2020 Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?460 Hp, 529 Nm
390.17 lb.-ft.
What is the engine size, Ford Mustang Fastback 2020 Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?5.0 l
5038 cm3
307.44 cu. in.
How many cylinders, 2020 Ford Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?8, V-engine
What is the drivetrain, Ford Mustang VI (facelift 2017) Fastback 2020 Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
How long is this vehicle, 2020 Ford Mustang Fastback?4797 mm
188.86 in.
How wide is the vehicle, 2020 Ford Mustang Fastback?1916 mm
75.43 in.
What is the curb weight, 2020 Ford Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?1786 kg
3937.46 lbs.
What is the gross weight, 2020 Ford Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?2150 kg
4739.94 lbs.
How much trunk (boot) space, 2020 Ford Mustang Fastback?408 l
14.41 cu. ft.
How many gears, What type is the gearbox, 2020 Ford Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?10, automatic transmission

Ford Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic 2020, 2021, 2022, 2023 Specs

General information
BrandFord
Model Mustang
Generation Mustang VI (facelift 2017)
Modification (Engine) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic
Start of production 2020 year
End of production 2023 year
Powertrain Architecture Internal Combustion engine
Body typeFastback
Seats 4
Doors 2
Performance specs
Combined fuel consumption (WLTP) 11.7 l/100 km 20.1 US mpg
24.14 UK mpg
8.55 km/l
CO2 emissions (WLTP)270 g/km
Fuel consumption (economy) - urban 15.7 l/100 km 14.98 US mpg
17.99 UK mpg
6.37 km/l
Fuel consumption (economy) - extra urban 10.2 l/100 km 23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel consumption (economy) - combined 13.1 l/100 km 17.96 US mpg
21.56 UK mpg
7.63 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 - 100 km/h4.4 sec
Acceleration 0 - 62 mph4.4 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net) 4.2 sec
Maximum speed 249 km/h 154.72 mph
100 km/h - 0 31.9 m
Weight-to-power ratio 3.9 kg/Hp, 257.6 Hp/tonne
Weight-to-torque ratio 3.4 kg/Nm, 296.2 Nm/tonne
Engine specs
Power 460 Hp @ 7250 rpm.
Power per litre 91.3 Hp/l
Torque 529 Nm @ 4900 rpm. 390.17 lb.-ft. @ 4900 rpm.
Engine layout Front, Longitudinal
Engine displacement 5038 cm3 307.44 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 93 mm 3.66 in.
Piston Stroke 92.7 mm 3.65 in.
Compression ratio 12:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Valvetrain DOHC, Ti-VCT
Engine oil capacity 9.5 l 10.04 US qt | 8.36 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.88 l 13.61 US qt | 11.33 UK qt
Engine systemsParticulate filter
Space, Volume and weights
Kerb Weight 1786 kg 3937.46 lbs.
Max. weight 2150 kg 4739.94 lbs.
Max load 364 kg 802.48 lbs.
Trunk (boot) space - minimum 408 l 14.41 cu. ft.
Fuel tank capacity 61 l 16.11 US gal | 13.42 UK gal
Dimensions
Length 4797 mm 188.86 in.
Width 1916 mm 75.43 in.
Width with mirrors folded 1957 mm 77.05 in.
Width including mirrors 2081 mm 81.93 in.
Height 1382 mm 54.41 in.
Wheelbase 2720 mm 107.09 in.
Front track 1594 mm 62.76 in.
Rear (Back) track 1646 mm 64.8 in.
Ride height (ground clearance) 120 mm 4.72 in.
Minimum turning circle (turning diameter) 12.2 m 40.03 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 10 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakesVentilated discs, 380x34 mm
Rear brakesVentilated discs, 330x25 mm
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 255/40 R19
Rear wheel tires: 275/40 R19
Wheel rims sizeFront wheel rims: 9.5J x 19
Rear wheel rims: 10J x 19
