2020 Fiat 500 (312, facelift 2015) 1.0 (70 Hp) Mild Hybrid

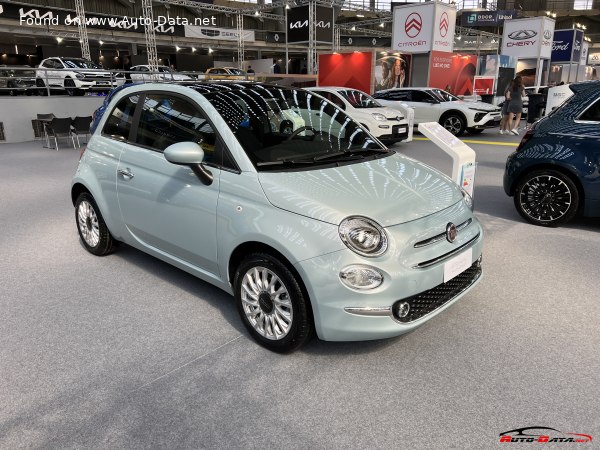

2016 Fiat 500 (312, facelift 2015) - Photo 1

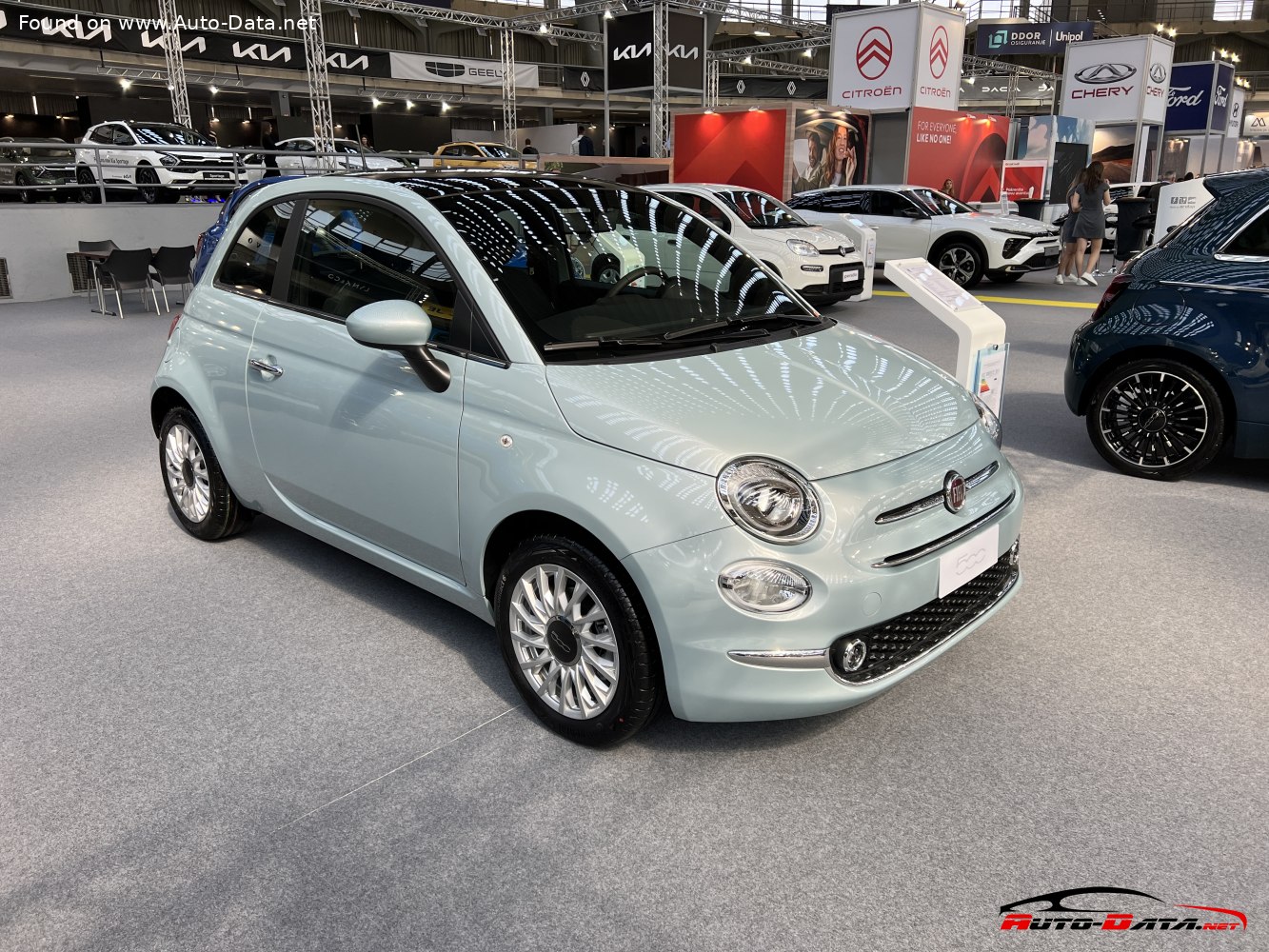

Fiat 500 (312, facelift 2015) - Photo 2Fiat 500 (312, facelift 2015) - Photo 3Fiat 500 (312, facelift 2015) - Photo 4Fiat 500 (312, facelift 2015) - Photo 5Fiat 500 (312, facelift 2015) - Photo 6Fiat 500 (312, facelift 2015) - Photo 7

Key specs

Fiat 500 Hatchback 2020, 2021, 2022, 2023, 2024

What is the body type, Fiat 500 (312, facelift 2015)?Hatchback, 3 Doors, 4 Seats
What is the fuel economy, Fiat 500 (312, facelift 2015) 1.0 (70 Hp) Mild Hybrid?3.9 l/100 km
60.31 US mpg
72.43 UK mpg
25.64 km/l
How ECO is the car, Fiat 500 1.0 (70 Hp) Mild Hybrid?88 g/km CO2
Euro 6d
How fast is the car, 2020 500 (312, facelift 2015) 1.0 (70 Hp) Mild Hybrid?167 km/h | 103.77 mph
0-100 km/h: 13.8 sec
0-60 mph: 13.1 sec
How much power, Fiat 500 Hatchback 2020 1.0 (70 Hp) Mild Hybrid?70 Hp, 92 Nm
67.86 lb.-ft.
What is the engine size, Fiat 500 Hatchback 2020 1.0 (70 Hp) Mild Hybrid?1.0 l
999 cm3
60.96 cu. in.
How many cylinders, 2020 Fiat 1.0 (70 Hp) Mild Hybrid?3, Inline
What is the drivetrain, Fiat 500 (312, facelift 2015) Hatchback 2020 1.0 (70 Hp) Mild Hybrid?Front wheel drive. MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV). The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work only in mixed mode.
How long is this vehicle, 2020 Fiat 500 Hatchback?3571 mm
140.59 in.
How wide is the vehicle, 2020 Fiat 500 Hatchback?1627 mm
64.06 in.
What is the curb weight, 2020 Fiat 500 (312, facelift 2015) 1.0 (70 Hp) Mild Hybrid?940 kg
2072.35 lbs.
What is the gross weight, 2020 Fiat 500 (312, facelift 2015) 1.0 (70 Hp) Mild Hybrid?1345 kg
2965.22 lbs.
How many gears, What type is the gearbox, 2020 Fiat 500 (312, facelift 2015) 1.0 (70 Hp) Mild Hybrid?6, manual transmission

Fiat 500 (312, facelift 2015) 1.0 (70 Hp) Mild Hybrid 2020, 2021, 2022, 2023, 2024 Specs

General information
BrandFiat
Model 500
Generation 500 (312, facelift 2015)
Modification (Engine) 1.0 (70 Hp) Mild Hybrid
Start of production January, 2020 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body typeHatchback
Seats 4
Doors 3
Performance specs
Fuel consumption (economy) - urban (NEDC) 4.7 l/100 km 50.05 US mpg
60.1 UK mpg
21.28 km/l
Fuel consumption (economy) - extra urban (NEDC) 3.4 l/100 km 69.18 US mpg
83.08 UK mpg
29.41 km/l
Fuel consumption (economy) - combined (NEDC) 3.9 l/100 km 60.31 US mpg
72.43 UK mpg
25.64 km/l
CO2 emissions (NEDC)88 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 - 100 km/h13.8 sec
Acceleration 0 - 62 mph13.8 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net) 13.1 sec
Maximum speed 167 km/h 103.77 mph
Emission standard Euro 6d
Weight-to-power ratio 13.4 kg/Hp, 74.5 Hp/tonne
Weight-to-torque ratio 10.2 kg/Nm, 97.9 Nm/tonne
Engine specs
Power 70 Hp @ 6000 rpm.
Power per litre 70.1 Hp/l
Torque 92 Nm @ 3500 rpm. 67.86 lb.-ft. @ 3500 rpm.
Engine layout Front, Transverse
Engine Model/Code 312.AYD1B
Engine displacement 999 cm3 60.96 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 70 mm 2.76 in.
Piston Stroke 86.5 mm 3.41 in.
Compression ratio 12:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine oil capacity 2.5 l 2.64 US qt | 2.2 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4.4 l 4.65 US qt | 3.87 UK qt
Engine systemsStart & Stop System
Space, Volume and weights
Kerb Weight 940 kg 2072.35 lbs.
Max. weight 1345 kg 2965.22 lbs.
Max load 405 kg 892.87 lbs.
Fuel tank capacity 35 l 9.25 US gal | 7.7 UK gal
Dimensions
Length 3571 mm 140.59 in.
Width 1627 mm 64.06 in.
Height 1488 mm 58.58 in.
Wheelbase 2300 mm 90.55 in.
Front track 1413 mm 55.63 in.
Rear (Back) track 1407 mm 55.39 in.
Minimum turning circle (turning diameter) 9.3 m 30.51 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work only in mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakesDisc, 257 mm
Rear brakesDrum, 180 mm
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 175/65 R14
Wheel rims size14
