1967 Citroen Dyane I (Phase I) 0.4 (21 Hp)

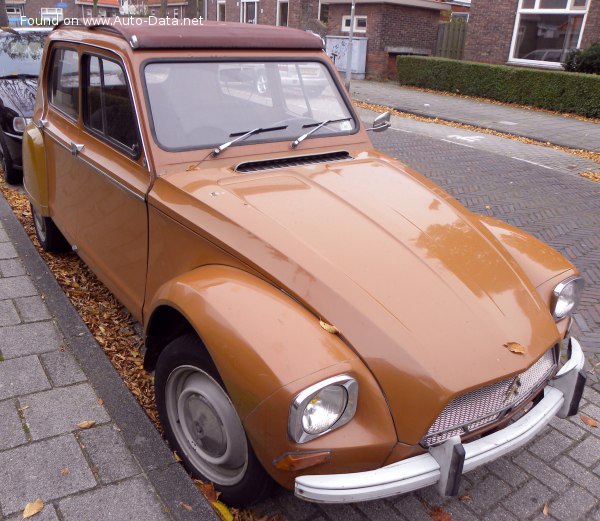

1967 Citroen Dyane I (Phase I) - Photo 1
Citroen Dyane I (Phase I) - Photo 2Citroen Dyane I (Phase I) - Photo 3Citroen Dyane I (Phase I) - Photo 4Citroen Dyane I (Phase I) - Photo 5Citroen Dyane I (Phase I) - Photo 6Citroen Dyane I (Phase I) - Photo 7Citroen Dyane I (Phase I) - Photo 8Citroen Dyane I (Phase I) - Photo 9

Key specs

Citroen Dyane Sedan, Fastback 1967, 1968

What is the body type, Citroen Dyane I (Phase I)?Sedan, Fastback, 5 Doors, 4 Seats
What is the fuel economy, Citroen Dyane I (Phase I) 0.4 (21 Hp)?5-6.5 l/100 km
47.04 - 36.19 US mpg
56.5 - 43.46 UK mpg
20 - 15.38 km/l
How fast is the car, 1967 Dyane I (Phase I) 0.4 (21 Hp)?95 km/h | 59.03 mph
How much power, Citroen Dyane Sedan, Fastback 1967 0.4 (21 Hp)?21 Hp, 29 Nm
21.39 lb.-ft.
What is the engine size, Citroen Dyane Sedan, Fastback 1967 0.4 (21 Hp)?0.4 l
425 cm3
25.94 cu. in.
How many cylinders, 1967 Citroen 0.4 (21 Hp)?2, Boxer
What is the drivetrain, Citroen Dyane I (Phase I) Sedan, Fastback 1967 0.4 (21 Hp)?Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.
How long is this vehicle, 1967 Citroen Dyane Sedan, Fastback?3905 mm
153.74 in.
How wide is the vehicle, 1967 Citroen Dyane Sedan, Fastback?1500 mm
59.06 in.
What is the curb weight, 1967 Citroen Dyane I (Phase I) 0.4 (21 Hp)?555 kg
1223.57 lbs.
What is the gross weight, 1967 Citroen Dyane I (Phase I) 0.4 (21 Hp)?875 kg
1929.04 lbs.
How much trunk (boot) space, 1967 Citroen Dyane Sedan, Fastback?250 - 1340 l
8.83 - 47.32 cu. ft.
How many gears, What type is the gearbox, 1967 Citroen Dyane I (Phase I) 0.4 (21 Hp)?4, manual transmission

Citroen Dyane I (Phase I) 0.4 (21 Hp) 1967, 1968 Specs

General information
BrandCitroen
Model Dyane
Generation Dyane I (Phase I)
Modification (Engine) 0.4 (21 Hp)
Start of production 1967 year
End of production October, 1968 year
Powertrain Architecture Internal Combustion engine
Body typeSedan, Fastback
Seats 4
Doors 5
Performance specs
Fuel consumption (economy) - combined 5-6.5 l/100 km 47.04 - 36.19 US mpg
56.5 - 43.46 UK mpg
20 - 15.38 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 95 km/h 59.03 mph
Weight-to-power ratio 26.4 kg/Hp, 37.8 Hp/tonne
Weight-to-torque ratio 19.1 kg/Nm, 52.3 Nm/tonne
Engine specs
Power 21 Hp @ 5500-6000 rpm.
Power per litre 49.4 Hp/l
Torque 29 Nm @ 4750 rpm. 21.39 lb.-ft. @ 4750 rpm.
Engine Model/Code AYA, A79/0
Engine displacement 425 cm3 25.94 cu. in.
Number of cylinders 2
Engine configuration Boxer
Cylinder Bore 66 mm 2.6 in.
Piston Stroke 62 mm 2.44 in.
Compression ratio 7.9:1
Engine aspiration Naturally aspirated engine
Engine oil capacity 2.5 l 2.64 US qt | 2.2 UK qt
Engine oil specification Log in to see.Log in to see.
Space, Volume and weights
Kerb Weight 555 kg 1223.57 lbs.
Max. weight 875 kg 1929.04 lbs.
Max load 320 kg 705.48 lbs.
Trunk (boot) space - minimum 250 l 8.83 cu. ft.
Trunk (boot) space - maximum 1340 l 47.32 cu. ft.
Fuel tank capacity 20 l 5.28 US gal | 4.4 UK gal
Dimensions
Length 3905 mm 153.74 in.
Width 1500 mm 59.06 in.
Height 1540 mm 60.63 in.
Wheelbase 2400 mm 94.49 in.
Front track 1260 mm 49.61 in.
Rear (Back) track 1260 mm 49.61 in.
Ride height (ground clearance) 155 mm 6.1 in.
Drag coefficient (Cd) 0.41
Minimum turning circle (turning diameter) 11 m 36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, manual transmission
Front suspension Independent coil spring
Rear suspension Independent coil spring
Front brakesDrum
Rear brakesDrum
